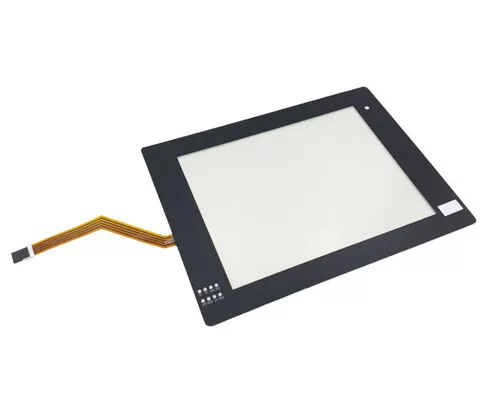

EMI RFI Shielding Bespoke Membrane Switch Assembly Designed to Operate Efficiently at 40°C Humidity with Custom Features

Product Description:

The Custom Membrane Switch is a highly versatile and specialized membrane switch unit designed to meet the unique needs of a wide range of applications. Engineered with precision and flexibility in mind, this custom membrane keypad switch offers exceptional performance, durability, and aesthetic appeal. Whether you require a small keypad for a handheld device or a large control panel, our personalized membrane switch overlay can be tailored to your exact specifications, ensuring seamless integration with your product’s design and functionality.

One of the standout features of this custom membrane switch is the availability of multiple LED color options, including red, green, blue, yellow, and white. These LED colors not only enhance the visual appeal of the switch but also provide clear and intuitive feedback to users, improving the overall user experience. The LEDs are carefully integrated within the switch design, maintaining a low profile while delivering bright and vibrant illumination. This makes the specialized membrane switch unit ideal for use in environments where visibility and clarity are critical.

The electrical characteristics of this custom membrane keypad switch are optimized for efficiency and reliability. With a current rating of ≤100mA, the switch consumes minimal power, making it suitable for battery-operated devices and energy-conscious applications. This low current requirement also contributes to the longevity and safety of the membrane switch, preventing overheating and electrical wear over extended periods of use.

Actuation travel is a crucial aspect of any membrane switch, and this product excels in providing a precise and responsive tactile experience. The actuation travel ranges from 0.1 to 0.4mm, offering a delicate yet distinct feedback that ensures the user can confidently register each keypress. This subtle travel distance strikes the perfect balance between sensitivity and durability, making the personalized membrane switch overlay comfortable for prolonged use without compromising reliability.

The circuit layer of the custom membrane switch is constructed from high-quality PET (Polyethylene Terephthalate), a material known for its excellent electrical insulation, mechanical strength, and resistance to environmental factors such as moisture and chemicals. The PET circuit layer ensures consistent electrical performance and protects the internal components from damage, prolonging the lifespan of the membrane switch. Additionally, the flexibility of PET allows for innovative design possibilities, enabling the membrane switch to conform to various shapes and surfaces as required by your application.

Customization is at the heart of this product’s appeal. We offer custom dimensions to accommodate any size requirements, allowing you to design a membrane switch that perfectly fits your device or control panel. This flexibility in size means that the specialized membrane switch unit can be employed across diverse industries, from medical equipment and industrial controls to consumer electronics and automotive interfaces. Our expert team works closely with customers to ensure that every aspect of the custom membrane keypad switch aligns with their precise needs, including layout, labeling, tactile response, and LED placement.

In summary, the Custom Membrane Switch combines advanced materials, customizable dimensions, and a range of LED color options to deliver a specialized membrane switch unit that is both functional and visually appealing. Its low current consumption, precise actuation travel, and durable PET circuit layer make it a reliable choice for any application requiring a personalized membrane switch overlay. Whether you are developing a new product or upgrading an existing control interface, this custom membrane keypad switch offers the flexibility, performance, and quality necessary to achieve your design goals.

Features:

• Tailored Membrane Switch Interface with Custom Dimensions Available
• Customized Membrane Switch Module featuring Silver Flex Circuit
• Specialized Membrane Switch Unit designed to withstand Humidity of 40°C, 90% ~ 95% for 240 Hours
• Connector Options: ZIF or FPC for versatile connectivity
• High-quality 3M Adhesive for reliable attachment

Technical Parameters:

Applications:

The ADMG Custom Membrane Switch product, model number OEM/ODM, is expertly crafted in China under stringent quality controls certified by ISO14001 and ISO9001 standards. This bespoke membrane switch assembly is designed to meet diverse application needs across various industries, offering exceptional reliability and durability. With a minimum order quantity of just 2pcs and flexible pricing available through negotiation, ADMG ensures that both small-scale and large-scale clients can benefit from tailored solutions.

Custom membrane keypad switches from ADMG are widely used in scenarios where precision, user interface customization, and environmental resilience are paramount. For instance, they are ideal for medical devices, where hygiene and ease of cleaning are critical, and for industrial control panels that require robust, long-lasting input mechanisms resistant to humidity levels of 40°C and 90% to 95% for up to 240 hours. The incorporation of a silver flex circuit and PET circuit layer enhances conductivity and durability, making these switches suitable for harsh and demanding environments.

The product’s packaging details, including L/C, D/A, D/P, and T/T options, facilitate smooth international transactions, while the delivery time of 5-8 working days ensures timely availability. The use of NICOMATIC female connectors and ZIF or FPC connectors provides secure and reliable electrical connections, contributing to the overall performance and longevity of the switch assembly.

In practical applications, the custom membrane keypad switch is perfect for consumer electronics, automotive dashboards, home appliances, and telecommunications equipment. Its bespoke membrane switch assembly design allows for seamless integration with various device interfaces, enhancing user experience through tactile feedback and customizable layouts. The versatility provided by ADMG’s custom membrane keypad switch enables innovative product designs that stand out in competitive markets.

In summary, ADMG’s custom membrane switch product is a superior choice for businesses seeking tailored, high-quality membrane keypad switches that combine advanced materials, reliable connectors, and certified manufacturing processes. Whether for industrial, medical, or consumer electronic applications, the bespoke membrane switch assembly delivers performance, durability, and customization options that meet diverse operational demands.

Customization:

ADMG offers Bespoke Membrane Switch Assembly services with the model number OEM/ODM, proudly made in China. Our Custom Designed Membrane Switch products are certified with ISO14001 and ISO9001, ensuring high quality and environmental standards. We accept a minimum order quantity of 2pcs, with pricing available through negotiation to best meet your requirements.

Our Bespoke Membrane Switch Assembly features a reliable ZIF or FPC connector, 3M adhesive for secure attachment, and an actuation travel range of 0.1-0.4mm for precise tactile response. The circuit layer is made of durable PET material, supporting a current of up to ≤100mA.

Packaging options include L/C, D/A, D/P, and T/T to provide flexible payment and shipping solutions. Delivery time is typically 5-8 working days, ensuring a swift turnaround for your custom membrane switch needs. Trust ADMG for your next Custom Designed Membrane Switch project.

Support and Services:

Our Custom Membrane Switch product is designed to provide reliable and durable user interface solutions for a wide range of applications. To ensure optimal performance, please follow the installation and maintenance guidelines carefully.

If you experience any issues with the membrane switch, first verify that it is properly connected and that there is no physical damage. Clean the surface regularly with a soft, damp cloth; avoid abrasive materials or harsh chemicals that could damage the switch.

For technical support, please have the product model number and purchase details ready. Our support team is equipped to assist with troubleshooting, replacement parts, and warranty information to ensure your satisfaction.

We also offer customization services to tailor the membrane switch to your specific requirements, including size, shape, graphic overlay, and circuit design. Contact our technical sales team to discuss your custom needs and receive expert guidance.

Regular updates and product documentation are available on our website to help you get the most out of your membrane switch solution.

Packing and Shipping:

Product Packaging and Shipping for Custom Membrane Switch

Our custom membrane switches are carefully packaged to ensure they arrive safely and in perfect condition. Each switch is individually wrapped in protective materials to prevent damage during transit. We use sturdy cartons and cushioning materials to provide additional protection against shocks and vibrations.

For shipping, we offer multiple options including standard ground shipping, expedited air shipping, and international delivery. All orders are processed promptly, and tracking information is provided once the shipment is dispatched.

We take great care in packaging and shipping to guarantee that your custom membrane switch meets your expectations upon arrival. Should you have any special packaging or shipping requirements, please contact our customer service team prior to placing your order.

FAQ:

Q1: What is the brand name and model number of the Custom Membrane Switch?

A1: The Custom Membrane Switch is branded as ADMG, and the model number is OEM/ODM.

Q2: Where is the Custom Membrane Switch manufactured?

A2: The Custom Membrane Switch is manufactured in China.

Q3: What certifications does the Custom Membrane Switch have?

A3: The product holds ISO14001 and ISO9001 certifications.

Q4: What is the minimum order quantity for the Custom Membrane Switch?

A4: The minimum order quantity is 2 pieces.

Q5: What are the payment and packaging options available?

A5: Payment options include L/C, D/A, D/P, and T/T. Packaging details are provided according to these payment methods.

Q6: How long does it take to deliver the Custom Membrane Switch?

A6: The delivery time is typically 5-8 working days.
