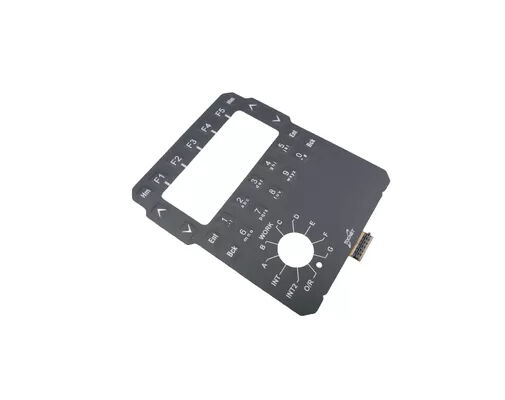

Life Cycle 1 Million Actuations Custom Membrane Switch Including Nicomatic Female Connector and Custom Dimensions for Control Panels

Product Description:

The Bespoke Membrane Switch Assembly represents the pinnacle of customized input technology, designed to meet the precise needs of various industries requiring reliable, efficient, and user-friendly control interfaces. This Custom Designed Membrane Switch offers exceptional performance, combining advanced engineering with tailored specifications to deliver a highly functional and durable solution. Whether you are looking to enhance the user experience of your electronic device or require a specialized control panel, this Specialized Membrane Switch Unit is engineered to provide outstanding responsiveness and longevity.

One of the key features of this membrane switch is its actuation travel, which ranges from 0.1 to 0.4mm. This precise actuation distance ensures that the switch provides tactile feedback with minimal effort, allowing users to operate the controls comfortably and accurately. The optimized actuation travel enhances the switch's sensitivity, making it suitable for applications where quick and reliable input is essential. This feature also contributes to reducing user fatigue, especially in devices that require frequent or repetitive use.

The Custom Designed Membrane Switch incorporates a circuit layer made of PET (polyethylene terephthalate), which offers excellent durability and flexibility. PET is known for its resistance to chemicals, moisture, and temperature variations, making it an ideal material for circuit layers in membrane switches. The use of PET ensures that the switch maintains its performance over a long operational lifespan, even in challenging environments. Additionally, the PET circuit layer supports precise circuit routing, enabling complex and compact designs that cater to specific application requirements.

Shielding is a critical aspect of any electronic interface, and this Specialized Membrane Switch Unit comes equipped with EMI/RFI shielding to protect against electromagnetic and radio frequency interference. This shielding ensures that the switch operates reliably in environments with high electromagnetic noise, such as industrial settings, medical devices, and communication equipment. By minimizing interference, the membrane switch maintains signal integrity and prevents malfunction or erroneous inputs, thereby enhancing overall system stability and user confidence.

The tail contact pitch of this membrane switch is set at 2.54mm, a standard spacing that facilitates easy integration with various connectors and printed circuit boards (PCBs). This pitch size is widely used in the electronics industry, making the Bespoke Membrane Switch Assembly compatible with a broad range of devices and simplifying the assembly process. The standardized tail contact pitch also ensures secure electrical connections, contributing to the switch's reliability and consistent performance.

Current handling capability is another important consideration, and this Custom Designed Membrane Switch supports currents up to ≤100mA. This current rating is suitable for low-power applications, ensuring that the switch can safely and effectively manage the electrical load without risk of damage or overheating. The ability to handle currents up to 100mA makes this membrane switch versatile enough for use in diverse applications, from consumer electronics to industrial control panels.

Overall, the Bespoke Membrane Switch Assembly combines precision engineering, durable materials, and advanced shielding technology to deliver a superior input device tailored to your specific needs. Its customizable actuation travel, reliable PET circuit layer, EMI/RFI shielding, standardized tail contact pitch, and suitable current rating make it an ideal choice for manufacturers seeking a high-quality membrane switch. Whether you require a Custom Designed Membrane Switch for a prototype or a Specialized Membrane Switch Unit for mass production, this product offers the flexibility and performance necessary to enhance your electronic interface solutions.

Features:

• Tailored Membrane Switch Interface with custom dimensions available
• Voltage rating: ≤50V for safe and efficient operation
• High-quality Silver Flex Circuit options for reliable performance
• Durable design with a life cycle of up to 1 million actuations
• Strong and reliable 3M adhesive for secure mounting
• Custom Membrane Keypad Switch designed to meet specific user requirements
• Customized Membrane Switch Module suitable for various applications

Technical Parameters:

This Customized Membrane Switch Module offers a Tailored Membrane Switch Interface designed to meet specific application needs. Our Bespoke Membrane Switch Assembly ensures high quality and reliability for your projects.

Applications:

The ADMG Custom Membrane Switch, model number OEM/ODM, is a versatile and reliable solution designed to meet diverse application occasions and scenarios. Manufactured in China and certified with ISO14001 and ISO9001, this product ensures high quality and environmental standards. With a minimum order quantity of just 2 pcs and a price available through negotiation, the ADMG membrane switch caters to both small and large-scale projects, offering flexible packaging options such as L/C, D/A, D/P, and T/T for convenient transactions. Its delivery time of 5-8 working days guarantees prompt fulfillment, making it ideal for time-sensitive applications.

The bespoke membrane switch assembly from ADMG is perfect for industries requiring durable and responsive user interfaces. Its custom dimensions accommodate various device designs, making it suitable for medical equipment, industrial control panels, consumer electronics, and automotive dashboards. The tailored membrane switch interface allows seamless integration with existing systems, providing a sleek and functional control solution that enhances user experience. Additionally, the NICOMATIC female connector ensures secure and reliable electrical connections with a current rating of ≤100mA, supporting efficient and safe operation.

In environments where durability is critical, the customized membrane switch module excels with a life cycle of 1 million actuations, ensuring long-term performance even under frequent use. It withstands harsh conditions, including high humidity levels of 40°C and 90% to 95% relative humidity over 240 hours, making it suitable for use in demanding industrial and outdoor settings. This resilience combined with tailored design capabilities makes ADMG’s membrane switches the preferred choice for applications requiring both robustness and precision.

Whether used in handheld devices, control panels, or specialized machinery, ADMG’s bespoke membrane switch assemblies provide a customizable and reliable interface solution. Their adaptability to various sizes and operational requirements, alongside stringent quality certifications and efficient delivery, position them as an excellent choice for businesses seeking customized membrane switch modules tailored to their unique needs.

Customization:

ADMG offers Customized Membrane Switch Module services with model number OEM/ODM, originating from China. Our products are certified with ISO14001 and ISO9001, ensuring high quality and environmental standards. We accept a minimum order quantity of 2pcs, with pricing available upon negotiation.

Our Membrane Switch Custom Fabrication includes flexible mounting options such as Surface Mount or Flush Mount, tailored to your specific needs. The tail contact pitch is 2.54MM, and the actuation travel ranges from 0.1 to 0.4mm, providing precise and reliable operation.

We ensure durability and performance with humidity resistance tested at 40°C and 90% to 95% for 240 hours. Additionally, our Specialized Membrane Switch Unit comes with EMI/RFI shielding to protect against electromagnetic interference.

Packaging details include L/C, D/A, D/P, and T/T payment methods, and we guarantee delivery within 5-8 working days. Trust ADMG for your customized membrane switch needs, combining quality, reliability, and expert fabrication service.
